TISCAM-6.50

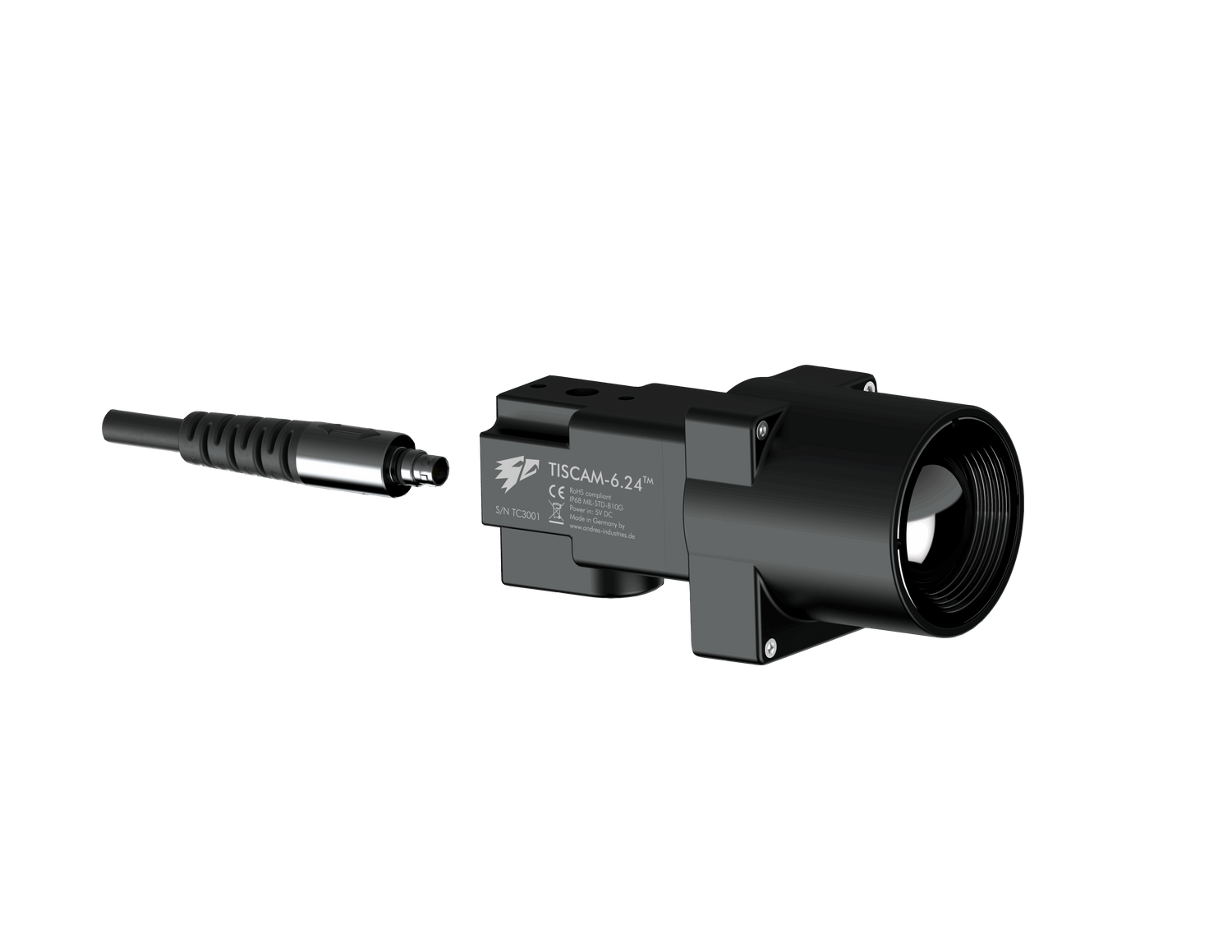

The extremely small outdoor thermal imaging camera is particularly easy to conceal due to its small size. Barely thicker than a thumb, it delivers images of the highest quality at 640×512 pixels. The standard version has a built-in socket for connecting a waterproof cable. This transmits the video data (PAL or NTSC) and supplies the device with power.

Technical data TISCAM-6.50

• Spectral band / pixel pitch: 7.5µm – 13.5µm / 12µm uncooled microbolometer
• Filter mode: White Hot (more filters on request)
• Temperature resolution: 60mK (50mK/40mK/20mK on request)
• Horizontal field of view: 50°
• Input voltage: 5–26V
• Polarity / Filter: White Hot
• FFC (shutter): Flagshutter
• Operating / storage temperature: –20 to +60°C / –40 to +80°C

• TISCAM-6.50
