Andres Industries AG  |  SKU: 240394

TISCAM-6.24

€7.200,00
Tax included Shipping calculated at checkout.

Shipping Information

Shipping within Germany:
€6.99
Free shipping for a shopping cart value of at least €99

Shipping within the EU and partners
(EU, Canada, USA, Australia, New Zealand):
€15
Free shipping for a shopping cart value of at least €99

Shipping outside the EU:
€35

Description

The extremely small outdoor thermal imaging camera is particularly easy to conceal due to its small size. Barely thicker than a thumb, it delivers images of the highest quality at 640×512 pixels. The standard version has a built-in socket for connecting a waterproof cable. This transmits the video data (PAL or NTSC) and supplies the device with power.

Technical data TISCAM-6.24

  • Spectral band / pixel pitch: 7.5 µm – 13.5 µm / 12 µm uncooled microbolometer
  • Filter mode: White Hot (more filters on request)
  • Temperature resolution: 60mK (50mK/40mK/20mK on request)
  • Horizontal field of view: 24°
  • Input voltage: 5–26V
  • Polarity / Filter: White Hot
  • FFC (shutter): Flagshutter
  • Operating / storage temperature: –20 to +60°C / –40 to +80°C

Specifications

  • Dimensions
    72 mm, 35 mm, 40 mm
  • Material
    Housing: anodized aluminum (7075), lens: germanium
  • Sensor resolution
    640×512 (60Hz)
  • Video output
    PAL (standard), NTSC (possible), USB (special version)

scope of delivery

• TISCAM-6.24

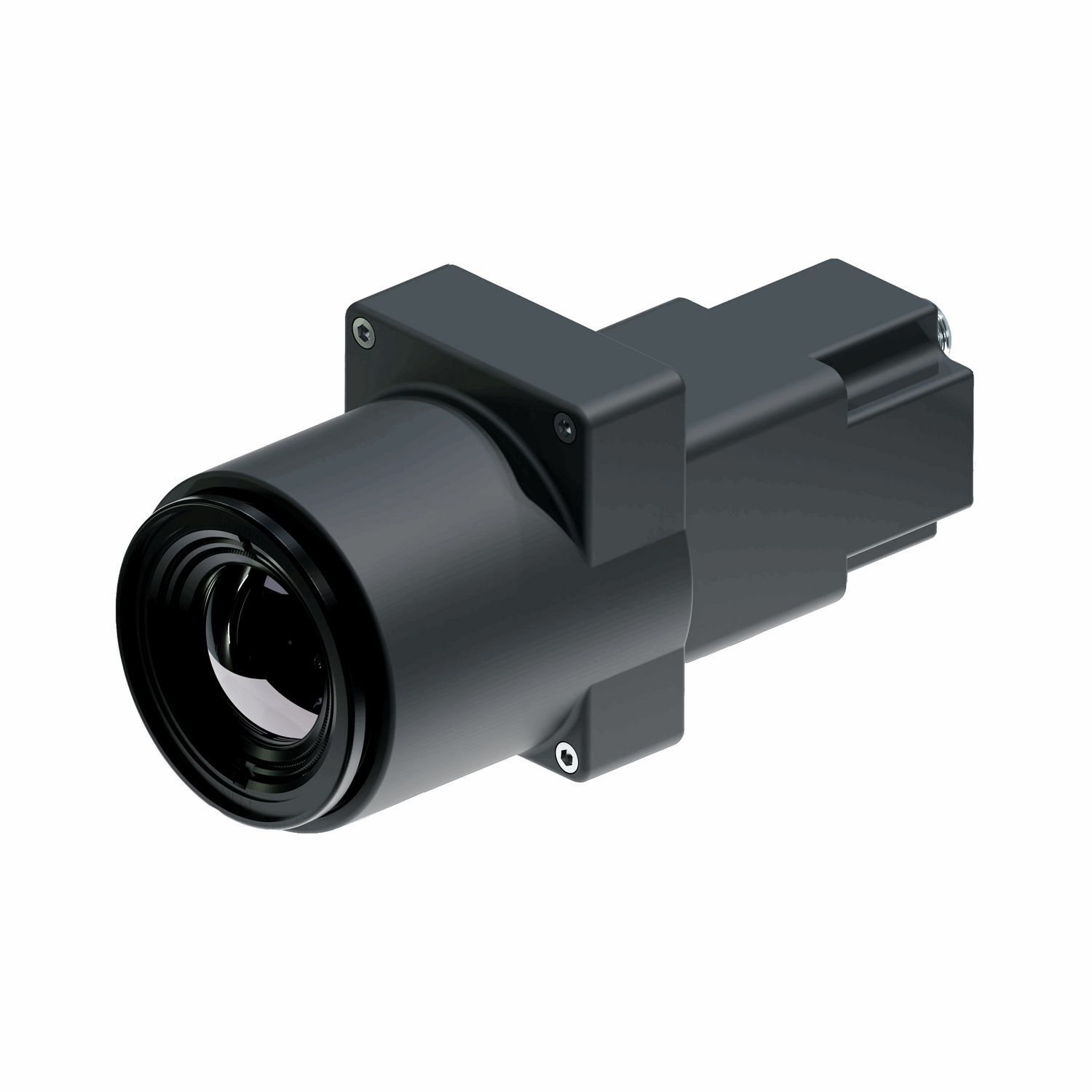

TISCAM-6.24 Waermebildkamera - Frontalansicht

TISCAM-6.24

Andres Industries AG
€7.200,00

Suitable for

N/A

Dimensions

72 mm, 35 mm, 40 mm

Weight

N/A

Material

Housing: anodized aluminum (7075), lens: germanium

Protection class

N/A

Power supply

N/A

Term

N/A

Temperature resolution

N/A

Sensor resolution

640×512 (60Hz)

Screen resolution

N/A

Video output

PAL (standard), NTSC (possible), USB (special version)

Zoom levels

N/A

FOV

N/A

Focus area

N/A

Surface temperature

N/A

Inhaled air temperature

N/A

Usage time

N/A

Usage time (effective)

N/A

Usage time (sleep mode)

N/A

Area of ​​application

N/A

Scope of delivery

N/A
